S-24, SN-24, S-24C (TG‑8024 - TG‑8524)
- Steel
- Thickness: 2"
- Colors: White or Ice White
- 2 layers (polystyrene + vinyl backing (R‑5.4 or R‑6.6) OR Non‑Insulated
- Panel design: Deep Grooves
IMPORTANT - The models S-24 and SN-24 are not available in Canada for now.
Important - Product names
- The names of both the TG‑8024 and TG‑8524 garage door models have been changed to the S‑24C model.
- The S‑24 and SN‑24 garage door models are part of the Mid‑America series.
Features and benefits

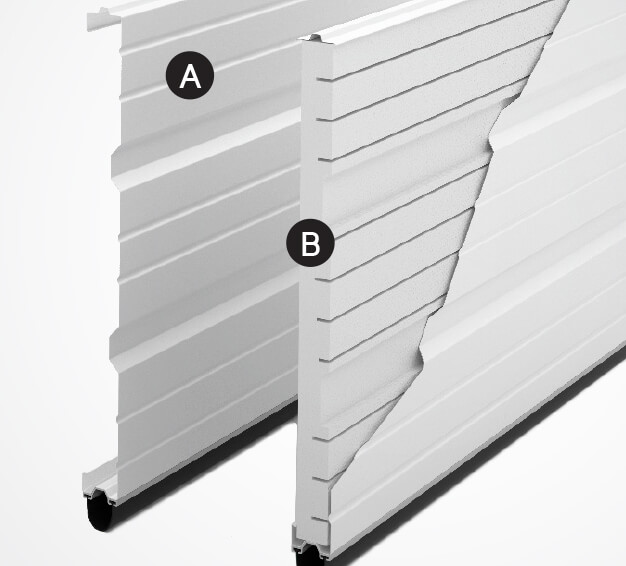

A
Deep-grooved steel wall
- Providing more strength and additional bending resistance, our sections are made with ½" deep and 2" wide horizontal grooves with alternating smaller grooves.
B
Optional polystyrene insulation
- For energy savings, polystyrene insulation protected with a vinyl backing is available.

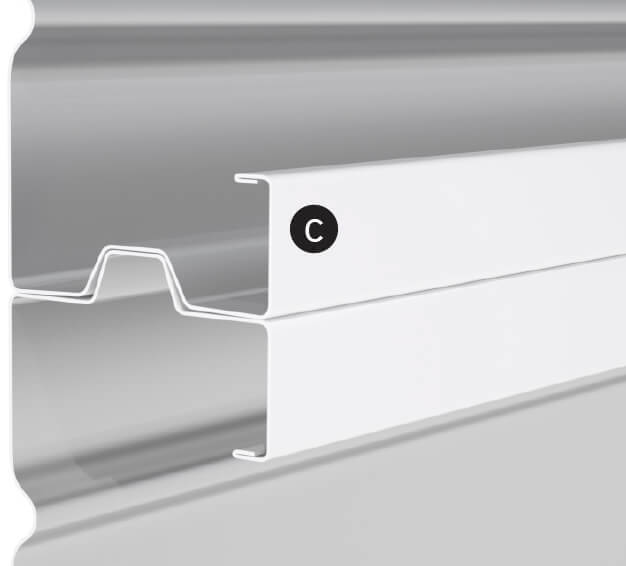

C
Section profile
- Rails are hemmed the entire length of the section for added sturdiness and dependability.

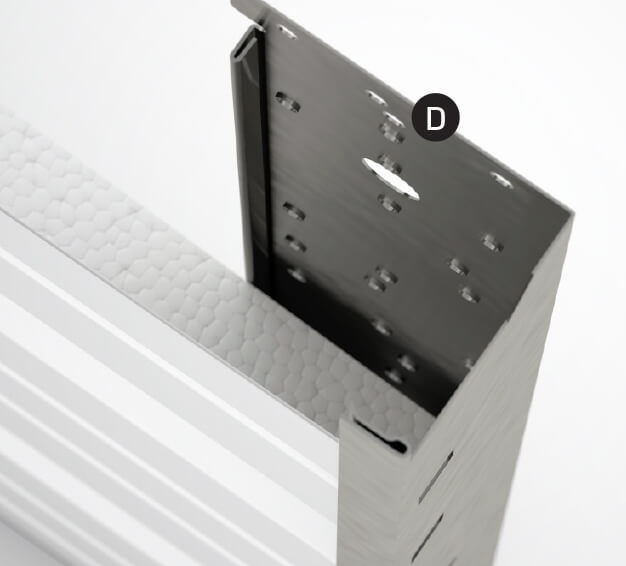

D
Center and end stiles
- With a fully hemmed edge for added strength and safety, all stiles are pre‑punched with extruded holes for secure attachment of hinges and hardware components.
Our technical department
We can provide budgetary pricing for your projects and your customers’ ones.
Panel construction
1
Hot-dipped galvanized steel wall
- Baked-on polyester paint. Can be repainted
- Corrosion resistant
| S-24 | SN-24 | S-24C | |
| Exterior steel skin |
24-gauge |
25-gauge |
24-gauge |
| Exterior side finish |
Smooth |
Smooth |
Woodgrain |
2
2” (50 mm) door
- Optional CFC-free polystyrene insulation covered with a vinyl backing ensuring a thermal-resistance rating of R-5.4 (RSI 1.0 or k=1.000 W/m2K) for S-24 and SN-24 and R-6.6 (RSI 1.2 or k=0.860 W/m2K) for S-24C.
3
Sections are made with ½” (13 mm) deep and 2” (50 mm) wide grooves providing more strength to the door.
4
Tongue & groove joints between sections that fit seamlessly.
5
Bottom weatherstripping
S-24 and SN-24: continuous astragal made of U-shaped flexible vinyl and held in place by an aluminum retainer.
S-24C: continuous, flexible, semi-circular, U-Shape PVC.
6
Vertical center stiles
S-24 and SN-24: 18-gauge galvanized steel provides a rock solid base and the pre-punched holes help to affix hinges and struts. One edge is hemmed to add more strength to the section.
S-24C: 20-gauge galvanized steel attached by a Tog-L-Loc® joining system, with no welding and rivets, at hinge placement locations.
Door weight:
| S-24 | SN-24 | S-24C | |
| Insulated |
1.59 lb/ft2 (7.8 kg/m2) |
1.50 lb/ft2 (7.3 kg/m2) |
1.42 lb/ft2 (6.9 kg/m2) |
| Non-insulated |
1.44 lb/ft2 (7.0 kg/m2) |
1.34 lb/ft2 (6.5 kg/m2) |
1.28 lb/ft2 (6.2 kg/m2) |

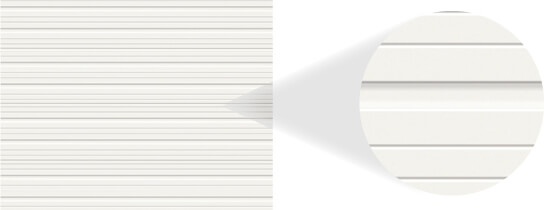

Panel design
Deep Grooves
1⁄2” deep, 2” wide
Sizes
| S-24 | SN-24 | S-24C | |
| Widths
In 1" (25 mm) increments |
From 5' to 30'2" (1.2 m to 9.2 m) |
From 5' to 20'2" (1.2 m to 6.1 m) |
From 5' to 24'2" (1.5 m to 7.3 m) |
| Heights
In 3" (76 mm) increments |
From 6' to 22' (1.8 m to 6.7 m) |
From 6' to 14' (1.8 m to 4.3 m) |
From 8' to 18' (2.4 m to 5.5 m) |
Sizes
Warranty (Limited)
1 year against structural failures
Colors
S-24 and SN-24
White
S-24C
Ice White
The accuracy of colors on the website may vary depending on your screen settings. To see the true colors, please contact your local Garaga dealer for a sample.
Windows

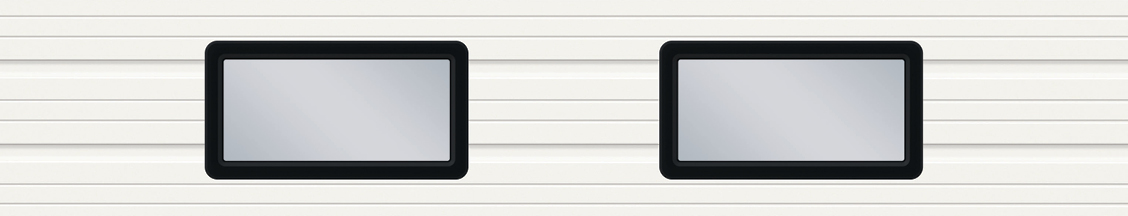

S-24 and SN-24 Standard windows
Sizes
24" x 6" (610 mm x 152 mm) or
25" x 13" (635 mm x 330 mm)
Glass
- Thermopane ½": Clear
- Single glass 1⁄8": Clear
Frame color
Black
S-24C Standard windows
Sizes
21" x 13" (533 mm x 330 mm)
Glass
- Single glass 1⁄8": Clear or Sandblasted
Frame color
White
S-24 | SN-24 | S-24C
Hardware
See details with your Garaga dealer.
